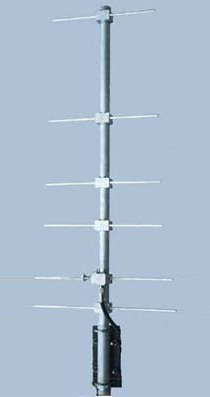

YAGI ANTENNA
Model: KY-150-9 Frequency: 136-174 MHz Gain: 9 dBi

Electrical Data
Frequency Range136-174 MHz
Bandwidth5 MHz
Gain9 dBi
Half-Power Beamwidth (Horizontal)60 degree
Front-to-Back Ratio22 dB
VSWR< 1.5
Input Impedance50 Ohm
PolarizationVertical / Horizontal
Lightning ProtectionDirect Ground
Maximum Power100 Watt
Connector TypeUHF / N or CS

Mechanical Data
Mounting Mast Diameter32 - 60 mm
Maximum Wind Velocity200 km/hr
Overall Length2.0 m
Elements6


Please Note:   1. Specifications are subject to change without any notice.
2. Customized in-band and out of band versions are available on request.
