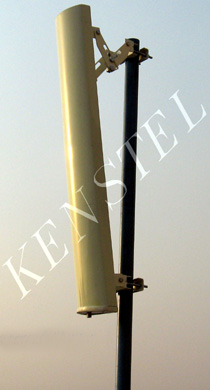

3.5 GHz SECTOR PANEL ANTENNA
Model: KSA-3500-17-90V Frequency: 3400-3600 MHz Gain: 17 dBi

Electrical Data
Frequency Range3400-3600 MHz
Bandwidth200 MHz
Gain17 dBi
Half-Power Beamwidth (Horizontal)90 degree
Half-Power Beamwidth (Vertical)8 degree
Front-to-Back Ratio> 25 dB
VSWR< 1.5
Input Impedance50 Ohm
PolarizationVertical
Lightning ProtectionDirect Ground
Maximum Power100 Watt
Connector TypeN female or Customization

Mechanical Data
Dimensions480 X 160 X 72 m
Weight2.0 kg
Mounting Mast Diameter32 - 50 mm
Maximum Wind Velocity200 km/hr
Radome MaterialFiber Glass


Please Note:   1. Specifications are subject to change without any notice.
2. Customized in-band and out of band versions are available on request.
